Parameters of Electric Bicycle
|
Certificates |
CE,Rohs,Fcc, MD,LVD |
|
Function |
Electric and PAS |
|
Battery Removeable |
YES |
|
Maximum Load |
150KG |
|
Maximum Speed |
50km/h |
|
Maximum mileage |
45Km |
|
Maximum Gradablity |
25-30 Degrees |
|
Working Temperature |
0-40℃ |
|
Storage Temperature |
-10°C to 40℃ |
|
Waterproof Level |
IP54 |
|
LED Light |
Front and brake light |
|
Materials |
Steel alloy |
|
Tyre size |
20 inch off road inflatable tire |
|
Battery Nominal Voltage |
48V |
|
Battery Input Voltage |
54.6V |
|
Battery Capacity |
15ah |
|
Brake |
Double disc brake |
|
Seat cushion telescopic |
Yes |
|
Speed gear |
Shimano 5 levels |
|
Derailleur |
7 Speed Shimano |
|
Motor Power |
750W |
|
Damping |
Front damping |
|
Color |
Black, White |
|
Seat |
uitable for 2 persons |
Preventive measures:
- It is forbidden to use high-speed mode for beginners or the elderly and infirm.
- It is forbidden to accelerate downhill.
- Do not touch the motor or brake parts.
- Check whether the folding position is fixed before driving.
Three riding modes
Electric mode: Select the 1-5 Pas assist mode and rotate the throttle to obtain speed without using pedals.
Assist mode: Select 1-5 Pas assist mode, use pedal, do not need to select throttle.
Manual mode: use the pedal directly without opening the meter.

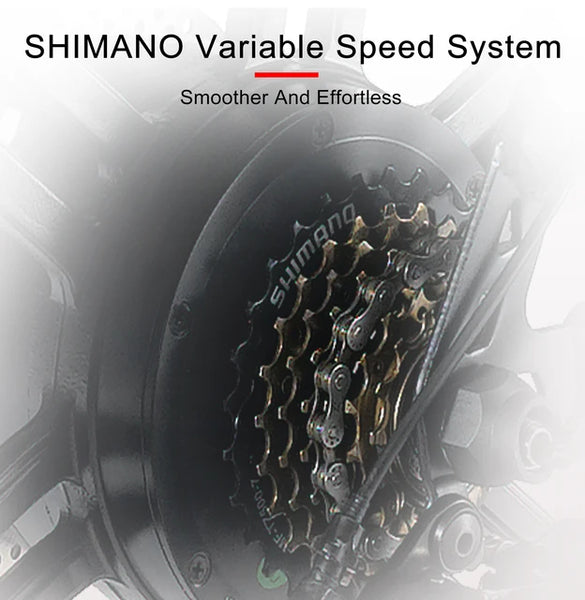

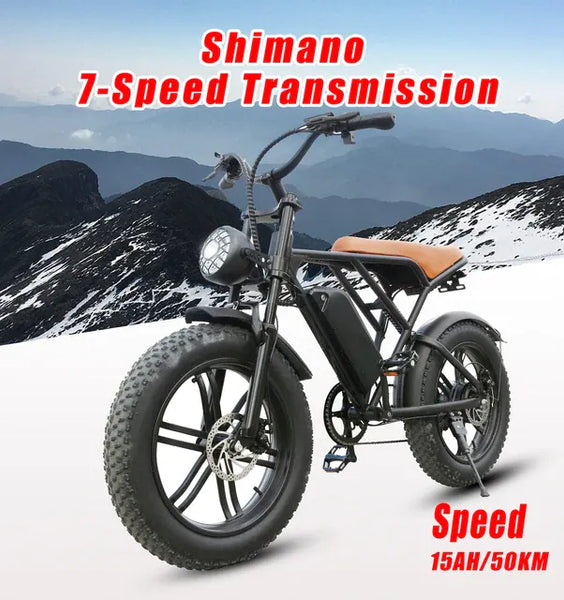

7 SHIMANO Speed,professional configuration of SHIMANO drive system,smoth and reliable variable speed performance.Realize lifing power transmission.It is more eficient,quieter,and requires less maintenance.
48v*750W brushless motor: the fastest speed up to 50km /h. The climbing capacity can reach 45° under ordinary road conditions.

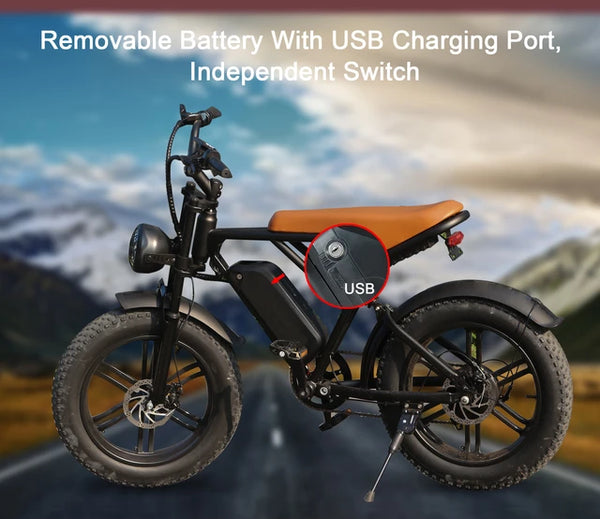

15AH capacity lithium battery: can run about 45km in pure electric mode; Auxiliary mode is about 80 km. It can be fully charged in 5 hours.
The battery has six types of protection:Comprehensive protection、Over current protection、Overcharge protection、Over discharge protection、Temperature protection、Wire break protection.
LED headlight + speaker, two in one, beautiful and simple, in rainy and foggy days, strong penetration, low power consumption, long service life.
Tail lights,safety tail lights necessary for night riding,there area variey of display ways to provide further pretection for your safety.
20x4.0 professional mountain bike tire: electric bike super power 750W, the wider the tire, the greater the adhesion surface, can reduce turbulence, can withstand the impact of 750W motor, as comfortable as a car.
Double Mechanical disc brake: the front and rear double Mechanical disc brake system, fast heat dissipation, fast braking, stable parking.

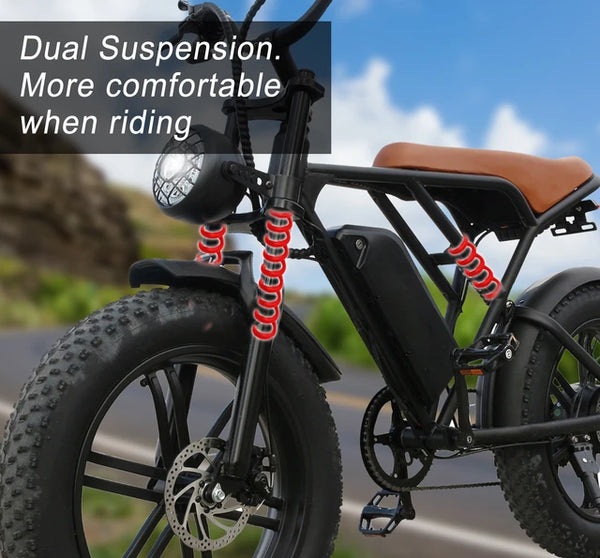

Front spring shock absorption: light weight, stronger shock absorption effect, with rebound and locking function, road/up and down the front fork closed, prevent riding effort. Gravel road/mountain road open the front fork to reduce turbulence.
Shock -Absorbing Seat ，comfortable ride.

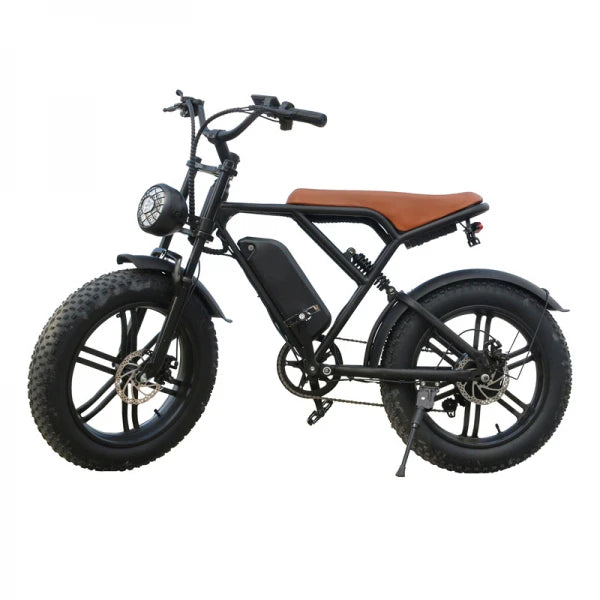

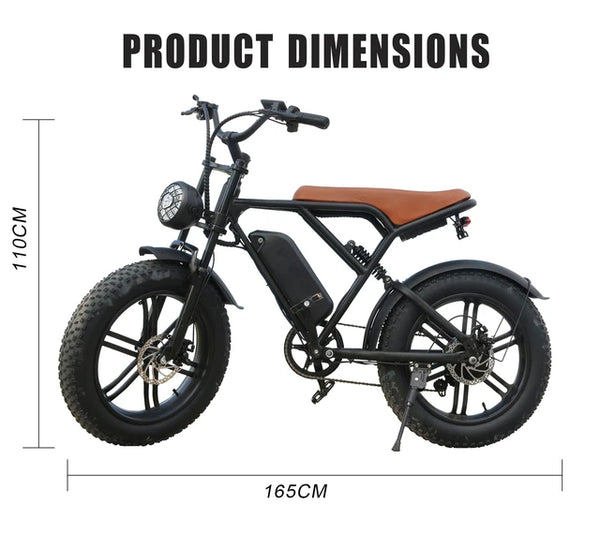

Product display
Additional instructions
1.When charging our electric bike, you need to use the adapter with the original plug in the correct way.
2.Endurance: The distance will vary according to the driver's weight, different road conditions and driving styles.
3.Limit climbing angle: According to the driver's weight, the speed is different, and there are different opinions.
4.Mixed orders are welcome, OEM orders are welcome. We can also export large quantities of goods as a manufacturer according to the specific requirements of customers.
5.If you have any questions, please feel free to contact us. We will reply within 12 hours.
